Home > Sheet and Plates > Stainless Steel 409 Sheet and Plates
Monib Stainless is among the leading manufactures and suppliers in Safat, Kuwait, of good quality stainless steel products. They can provide a full range of stainless steel materials under one roof as well as high-quality durable reliable solutions, ranging from Stainless Steel 409 Sheets and Plates ideal for automotive and industrial and chemical applications, high corrosion resistance in addition to an excellent performance with high temperatures. Monib Stainless is a quality-conscious company that provides customized products to its clients with superior customer service and competitive pricing.
Stainless Steel 409 is a ferritic alloy, comprising approximately 10.5-11.75% of chromium. Small proportions of carbon, manganese, and silicon are added. Excellent oxidation and corrosion resistance can be obtained under high temperature. Tensile strength ranges around 450-600 MPa. Moderate hardness has also been seen in Stainless Steel 409. SS 409 can endure durability at relatively affordable cost, thus eliminating the formation of scale. Superior weldability, good formability, and resistance to corrosion at elevated temperatures are its advantages, thus ideal for industrial applications.
Specifications< ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Element | Content |
|---|---|
| Carbon | 0.08 maximum |
| Manganese | 1.00 maximum |
| Phosphorus, maximum | 0.045 maximum |
| Sulfur, maximum | 0.045 maximum |
| Silicon | 1.00 maximum |
| Nickel | 0.5 |
| Chromium | 11.75 |
| Molybdenum | – |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Ti |
|---|---|---|---|---|---|---|---|---|---|
| SS 409 | 0.030 max | 0.5 max | 1 max | – | 0.020 max | 1 max | 0.040 max | 10.5 – 11.7 | 6*(%C+%N |
Contact us to get a quick quote for your requirement.

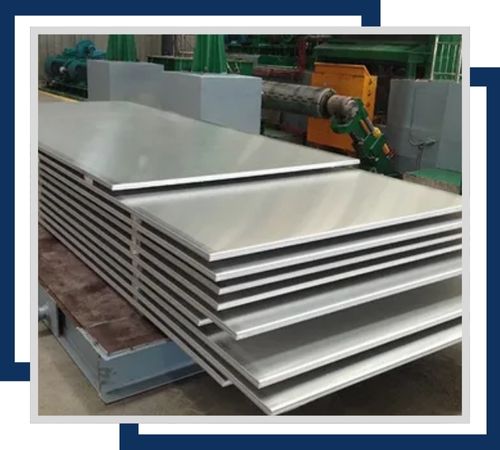

Stainless Steel 409 Hot Rolled Sheet and Plates provide good oxidation resistance and strength. These are applied in automotive exhaust systems, heat exchangers, and many more high-temperature applications that require durability.

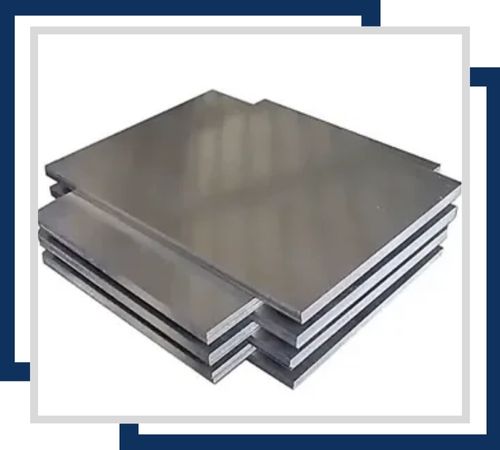

Stainless Steel 409 Cold Rolled Sheet and Plates are available with a smooth, precise finish, which provides enhanced mechanical properties, applied in automobile parts, industrial applications, and structural components that require a clean, flat surface.

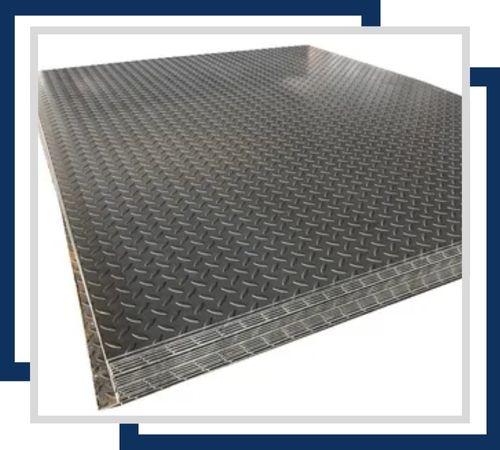

Stainless Steel 409 Chequered Sheet and Plates are applied where slip resistance and durability is required, including flooring and stair treads. It combines the strength with the corrosion resistance so it can be applied in either industrial or commercial applications.

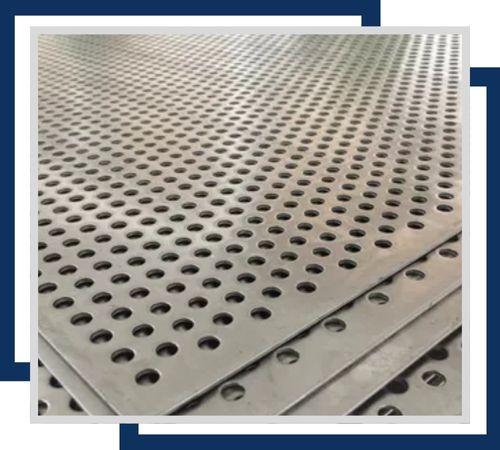

Stainless Steel 409 Perforated Sheet and Plates are used in filtration, ventilation, and aesthetic applications. They are strong and resistant to corrosion, with functional perforations that allow for the design of various custom and structural applications in high-temperature conditions.

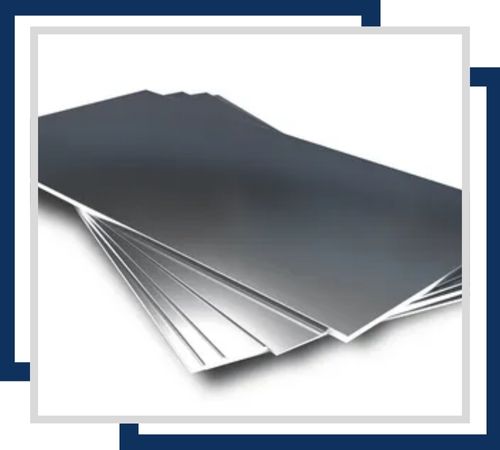

Stainless Steel 409 Shim Sheet and Plates can ensure the accuracy and rigidity to the machinery and structural parts. Owing to its properties of resistance to high temperature and corrosion, it is widely used in automobile and industrial applications where such accurate distance and alignment are a must.

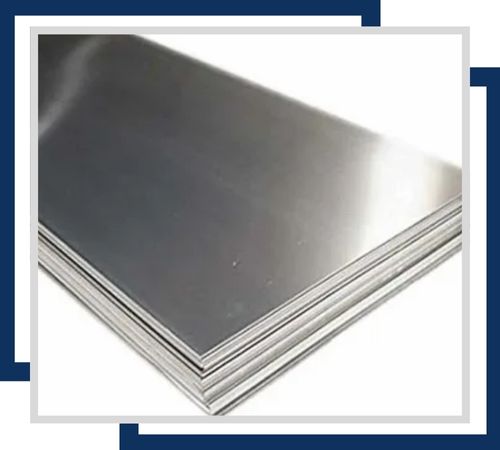

The stainless steel 409 polished sheet and plates feature a bright, shiny surface suitable for decorative and architectural purposes. They exhibit good resistance to oxidation and corrosion and can be used for aesthetic as well as functional purposes in any environment.
Monib Stainless assures the best experience for customers by providing detailed documentation of our Stainless Steel 409 Sheets and Plates. We deliver the following crucial documents: Commercial Invoice, Packing List, Fumigation Certificate, Heat Treatment Chart, Quality Assurance Plan, and NABL-approved Lab Test Report. These documents authenticate the genuineness but at the same time highlight the better quality of our products that instill confidence and trust among our esteemed customers. Furthermore, we provide Stainless Steel 409 Sheets and Plates with test certificates like MTC in accordance with EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. Those certify our customer centric focus coupled with an unstoppable insistence on perfection on our products.
Stainless Steel 409 sheets and plates are used widely in the automotive applications as exhaust systems because of its properties against corrosion and oxidation under high temperatures. It is also used in the fabrication of heat exchangers, catalytic converters, and silencers. Besides, the alloy is applied in equipment used for chemical processing, storage tanks, and moderate-corrosive-condition components. It is suitable for industrial applications, which require medium corrosion resistance and are affordable.
