Monib Stainless, located in Safat, Kuwait, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 17-7 PH Sheets and Plates. They specialize in providing high-performance materials tailored for demanding industrial needs. With a strong focus on quality, precision, and customer satisfaction, Monib Stainless ensures that their products meet international standards and specific industry requirements. Their 17-7 PH stainless steel sheets and plates are known for their exceptional strength, corrosion resistance, and dimensional stability, making them perfect for critical engineering tasks. Catering to sectors like aerospace, petrochemical, construction, and manufacturing, Monib Stainless remains a trusted partner for durable and advanced stainless-steel solutions in Kuwait and beyond.
The 17-7 PH is an alloy of stainless steel, mainly consisting of iron, chromium, 16-18% nickel, 6.50-7.75%, trace aluminum, and 0.75-1.50% .It has a high strength as well as it is resistant to fatigue and oxidation. This can make 17-7 PH suitable for aerospace, automotive, and industrial applications. In the case of this alloy, the mechanical properties are improved upon heat treatment for hardening. It is dimensional stable, which gives it desirable properties. Components subjected to the environment have its high tensile strength and corrosion resistance as the other benefits.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.

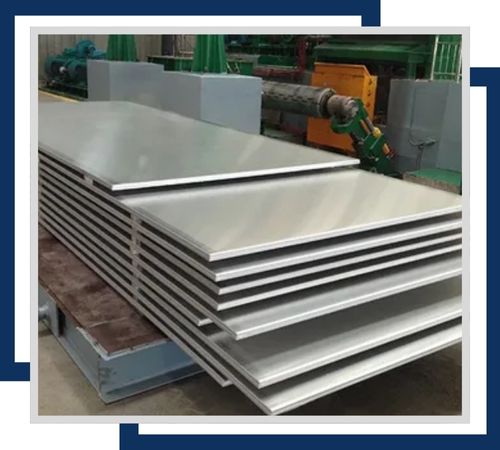

Stainless Steel 17-7 PH Hot Rolled Plates are characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

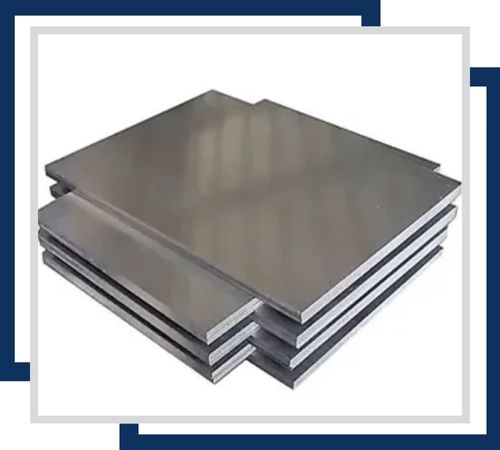

Stainless Steel 17-7 PH Cold Rolled Sheets have a very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.

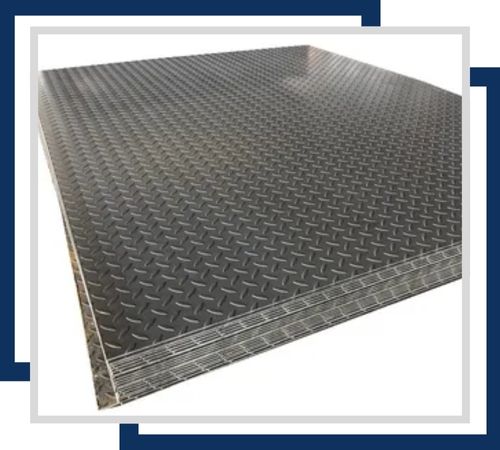

Stainless steel 17-7 PH chequered plates have a raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.

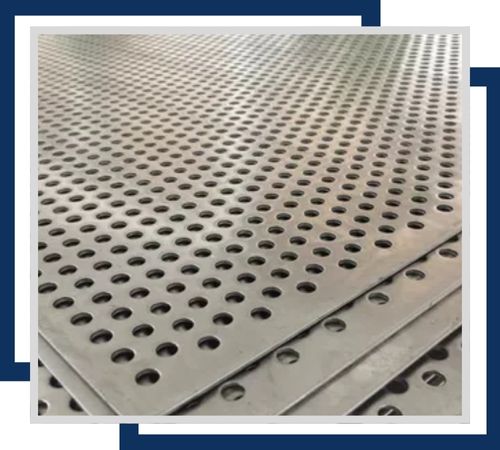

The Stainless Steel 17-7 PH Perforated Sheets have many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

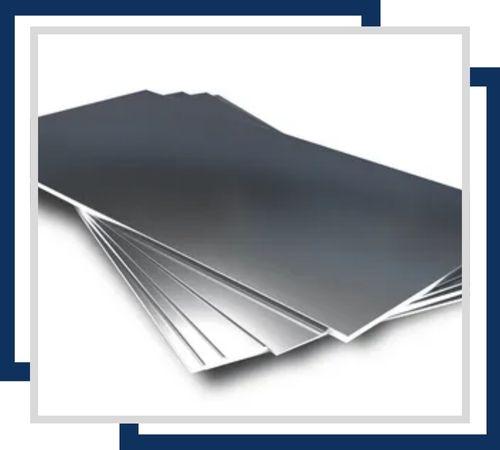

Stainless Steel 17-7 PH Shim Sheet is a thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.

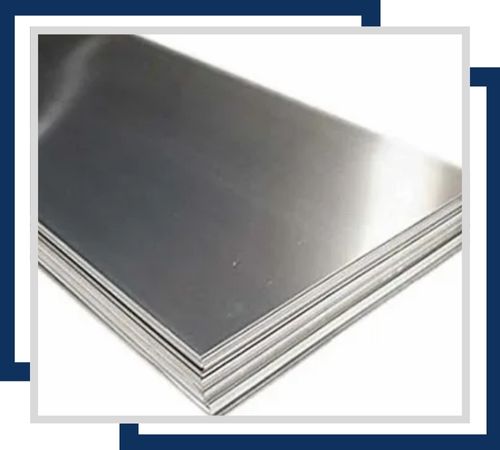

Stainless Steel 17-7 PH Polished Plates have a bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Stainless Steel 17-7 PH Sheets and Plates are made from precipitation-hardened alloys that primarily consist of chromium (16–18%), nickel (6.5–7.75%), and aluminum, along with carefully controlled amounts of carbon, manganese, silicon, and iron. This unique blend gives the material impressive mechanical strength after heat treatment. The alloy showcases high tensile and yield strength, excellent fatigue resistance, and good corrosion resistance across various environments. Its ability to maintain mechanical properties at elevated temperatures and ensure dimensional stability makes it ideal for precision components. Additionally, the material offers good formability and spring-like characteristics when processed correctly.
Stainless Steel 17-7 PH Sheets and Plates find extensive use in industries that demand high strength, corrosion resistance, and outstanding mechanical performance. They are commonly used in aerospace components, springs, diaphragms, fasteners, and precision instruments where reliable performance is essential. This alloy is also employed in chemical processing equipment, marine hardware, pressure-resistant structures, and automotive parts that face extreme conditions.
