Monib Stainless, located in Safat, Kuwait, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 201 Sheets and Plates. Known for its dedication to quality, the company offers durable and dependable stainless-steel products that cater to a wide range of industrial and commercial needs. The Stainless Steel 201 Sheets and Plates from Monib Stainless are crafted to meet international standards, ensuring they provide exceptional strength, corrosion resistance, and visual appeal. With a focus on industries like construction, automotive, kitchenware, and fabrication, Monib Stainless guarantees timely deliveries, consistent quality, and expert technical support, making it the go-to choice for customers in Kuwait and across the Middle East.
Stainless Steel 201 is an austenitic alloy with major elements such as iron, chromium (16-18%), nickel (3.5-5.5%), and manganese (5.5-7.5%). It offers good corrosion and oxidation resistance. It shows excellent formability, strength, and toughness and has good weldability and fabricability. Tensile strength is about 70-90 ksi (485-620 MPa) while yield strength is around 30-45 ksi (205-310 MPa). It exhibits moderate acid resistance making it suitable to applications such as kitchen equipment, architectural elements, and industrial machinery. Nevertheless, compared to higher-nickel grades, it has lower corrosion resistance.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | JIS, AISI, ASTM, GB, DIN, EN |
| Range | : | 1000/1219/1500/2000mm,etc |
| Conventional common size | : | 4 inch X 8 inch ,10 inch x 5 inch |
| Thickness | : | 0.2 mm to 20mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grades | : | SS 201 UNS S20100 |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Contact us to get a quick quote for your requirement.

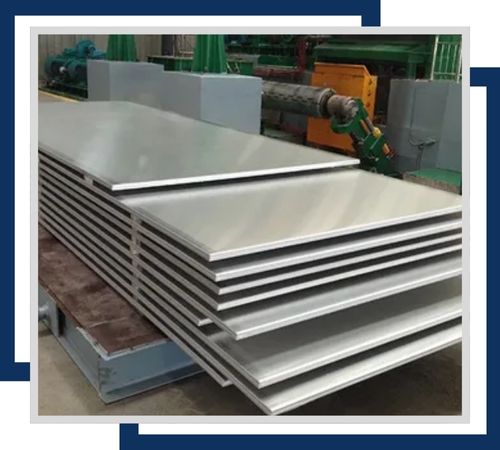

Stainless Steel 201 hot rolled plates are resistant to corrosion and are used in various structural applications. They are available in sizes from 6mm to 100mm thick, and can be ordered to any size.

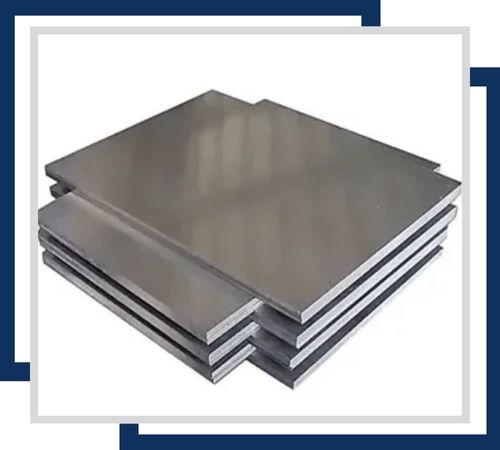

The stainless steel 201 cold rolled sheets offer excellent corrosion resistance and a smooth surface finish. They are available in the thickness range of 0.3mm to 3mm and widths ranging from 1000mm to 2000mm, thus applicable for various purposes.

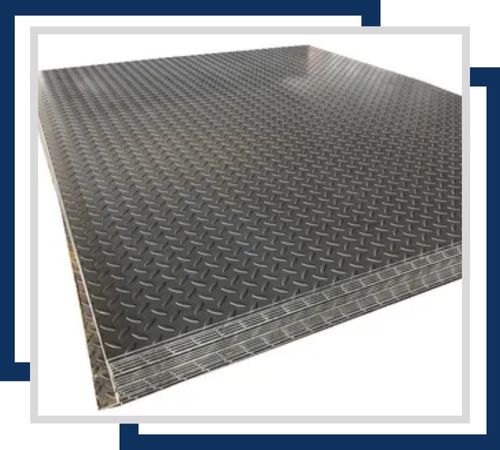

Stainless Steel 201 chequered sheets are used for flooring and other high-traffic areas due to their improved slip resistance and durability. These sheets are available in thicknesses of 1mm to 6mm and standard sizes of 1000mm x 2000mm.

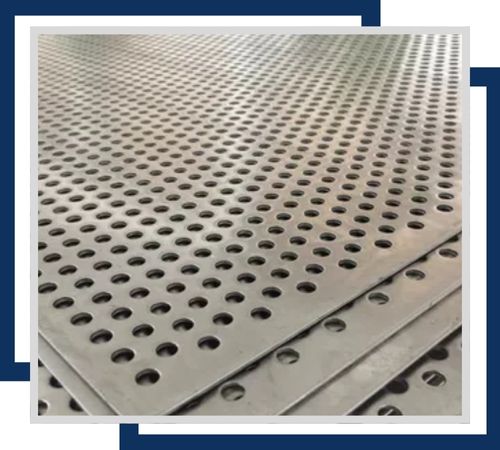

Stainless Steel 201 perforated sheets have outstanding corrosion resistance and find applications for purposes of ornamentation and function. They are also available with holes of various diameters and sizes, commonly within the range of 0.5mm to 6mm in thickness, and sizes from 1000mm x 2000mm.

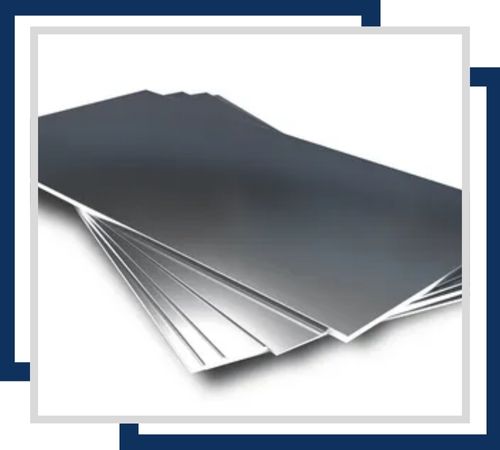

Stainless Steel 201 shim plates possess good resistance against corrosion and accurate thickness for spacing and alignments. It is generally available in thickness ranging from 0.1mm to 5mm along with sizes up to 1000mm x 2000mm.
Stainless Steel 201 Polished Sheet and Plates have high-quality reflective finishes. It has good strength at high temperatures that offer abrasion and corrosion resistance in applications having processes.
Stainless Steel 201 Sheets and Plates are mainly made up of iron, with 16–18% chromium, 3.5–5.5% nickel, and 5.5–7.5% manganese, all while keeping carbon content low to boost corrosion resistance. They showcase impressive tensile strength, decent hardness, and moderate ductility, which makes them ideal for various forming and fabrication tasks. The high manganese content enhances toughness and minimizes the risk of cracking, while chromium helps resist oxidation and corrosion. Stainless Steel 201 maintains its structural integrity under different operating conditions and offers reasonable resistance to pitting, scaling, and general wear, making it a versatile option for both industrial and decorative uses.
Stainless Steel 201 Sheets and Plates find extensive use in areas that demand durability, corrosion resistance, and cost-effectiveness. They’re often found in kitchen equipment, utensils, sinks, and food processing machinery, thanks to their hygienic qualities and easy maintenance. In the construction and architectural fields, SS 201 is utilized for cladding, roofing, and decorative panels.
