Home > Sheet and Plates > Stainless Steel 317L Sheet and Plates
Monib Stainless is one of the leading stainless steel product manufacturers and suppliers in Safat, Kuwait. We specialize in stainless steel solutions and offer a wide range of products that include Stainless Steel 317L Sheets and Plates. Our 317L sheets and plates are ideal for industries such as chemical, pharmaceutical, and food processing, due to their exceptional corrosion resistance, strength, and durability. We are committed to providing premium products, outstanding customer service, and timely delivery, making us the most trusted choice for stainless steel requirements in the Kuwait and beyond.
Stainless Steel 317L Sheet and Plate is a low-carbon, austenitic stainless steel which provides outstanding resistance toward corrosion especially in acidic and chloride environment. It contains usually 18-20% of chromium, 3-4% molybdenum with 0.03% carbon and nickel along with manganese. Low concentration of carbon enhances weldability along with reducing carbide formation. Its tensile strength ranges between 500-700 MPa, the yield strength is about 205 MPa, and elongation varies between 40-50%.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
High resistance to corrosion by chlorides and acids available as sheets and plates from a thickness of 3mm to 100mm in width to 2 meters. The hot-rolled product allows heavy usage because it produces a tough and durable finish.

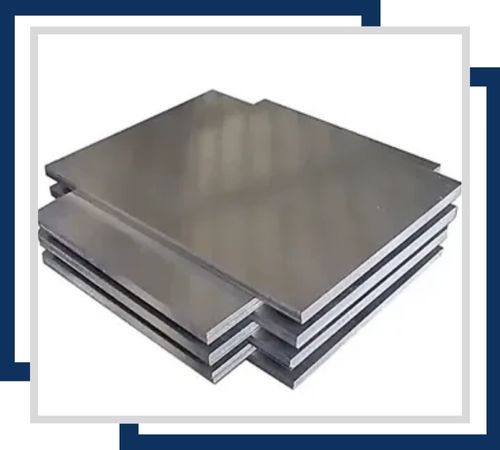

With high corrosion resistance, the cold rolling provides cold rolled sheets and plates that range in thickness from 0.3mm to 6mm, with widths reaching up to 1.5 meters. In the case of cold rolling, it leaves the surface very smooth and precise for aesthetic and high-precision uses.

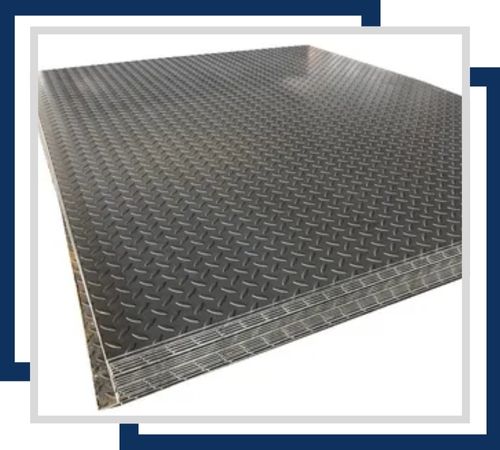

They have been designed with the patterned surface for superior friction and slip resistance. Chequered sheets and plates provide superior resistance to corrosion. These products are available from 1.5mm up to 6mm thickness in custom sizes as per application requirements.

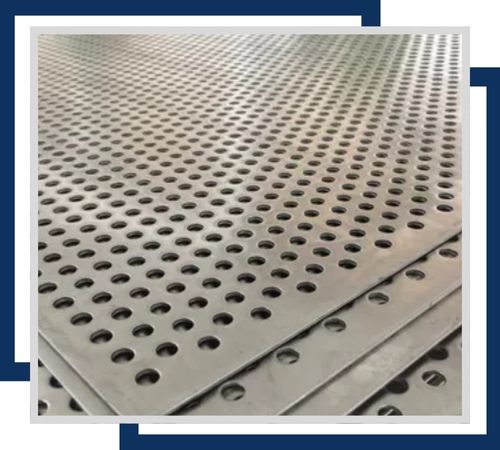

These sheets and plates are superior in corrosion resistance and perforated holes for ventilation, filtering, and aesthetic purposes. Common sizes range from 0.5mm to 6mm thick, and custom hole patterns and diameter sizes are offered according to several industrial and architectural needs.

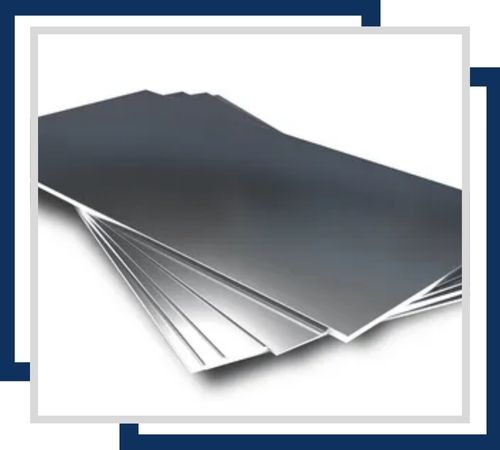

Shim sheets and plates are highly resistant to corrosion and are used for precise spacing and alignment. They are thin gauges usually from 0.1mm to 3mm thick, but may be customized in dimensions according to the particular mechanical and industrial application.

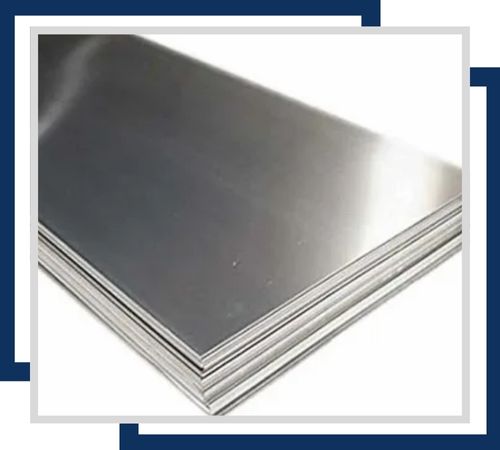

They come with great corrosion resistance as well as the option of polishing to a mirror finish for aesthetic use, suitable in decorative or high-visibility applications. The sheets and plates range in thickness from 0.5mm to 12mm.
We, at Monib Stainless, ensure a completely hassle-free experience to our customer while providing documentation with our premium range of Stainless Steel 317L Sheets and Plates . Our pack consists of the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. The quality and authenticity of our product get authenticated due to these documents, which then brings trust and confidence in the mind of our client. We also provide test certificate for our Stainless Steel 317L Sheets and Plates, like an MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates indicate our relentless pursuit of client satisfaction and our quest for excellence in the quality of the product.
Stainless Steel 317L Sheets and Plates are employed in those applications where there is a demand for strength as well as exceptional resistance to corrosion. Such areas involve chemical processing, pharmaceutical manufacture, food processing, and marine atmospheres. Their application to equipments that work with aggressive acids and chlorides or high temperature situations, including exchangers and reactors, tanks, pipes and valves.
