Monib Stainless is a leading manufacturer of quality stainless steel products based in Safat, Kuwait. Specializing in a wide range of stainless steel solutions, we known for its excellence in providing durable and reliable products Among their wide range of offerings, we offers ideal premium stainless steel 309 tubing high temperature applications for. With a strong commitment to customer satisfaction, the company ensures high quality products with precise specifications to meet industry standards and requirements.
Stainless steel 309 is an austenitic alloy with excellent oxidation resistance and a high melting point. It is typically composed of 24-26% chromium and 13-15% nickel, providing resistance to oxidation and corrosion in areas up to 2010°F (1100°C). Its properties include excellent weldability, thermal conductivity, and strength a resistant to carburization and scaling. Some advantages of stainless steel 309 tubing include the strength and resistance at extreme temperatures, thus making it an ideal tubing in high temperature applications in aerospace industries and electricity generation.
| Specifications | ASTM A/ASME SA213 / A249 / A269 |
| Dimensions | ASTM, ASME and API |
| SS 309 Tubes Size | 10.29 OD (mm) – 762 OD (mm) |
| Thickness | 0.35 OD (mm) to 6.35 OD (mm) in thickness ranging from 0.1mm to 1.2mm. |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round Tubes, Custom Tubes, Square Tubes, Rectangular Tubes, “U” Shape, Hydraulic Tubes |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
| Grade | 309 | |
|---|---|---|
| min | max | |
| C | – | 0.20 |
| Mn | – | 2 |
| Si | – | 1 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 18.0 | 23.0 |
| Mo | – | – |
| Ni | 8.0 | 14.0 |
| N | – | – |
| Grade | 309 | |
|---|---|---|
| Tensile Strength (MPa) min | 620 | |
| Yield Strength 0.2% Proof (MPa) min | 310 | |
| Elongation (% in 50mm) min | 45 | |
| Hardness | Rockwell B (HR B) max | 85 |
| Brinell (HB) max | 169 | |
Contact us to get a quick quote for your requirement.
We provides quality tested Stainless Steel 309 Tubing. All tubing is subjected to dimensional, mechanical and chemical analysis and tested to all industry standards for performance and durability. Compliance certificates are issued along with the products, which assures the strength and reliability of the product for multiple applications in any industry.

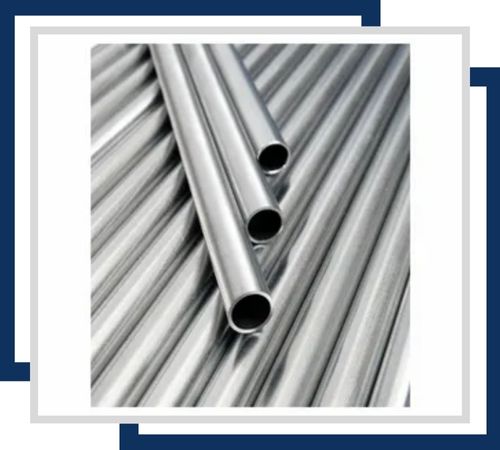

Stainless Steel 309 Seamless Tubing offers excellent corrosion resistance and is available in sizes ranging from 1/8″ to 12″ nominal diameter. It is ideal for high-temperature applications, with superior strength and durability. This tubing type ensures leak-free connections due to its seamless construction.

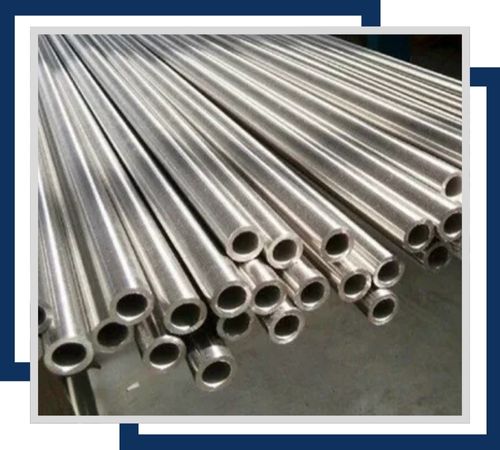

Stainless Steel 309 Welded Tubing provides good corrosion resistance and is available in sizes from 1/8″ to 24″ nominal diameter. It is produced by welding rolled strips of 309 stainless steel, making it cost-effective for various industrial applications. The welded joints are robust, ensuring long-term reliability.

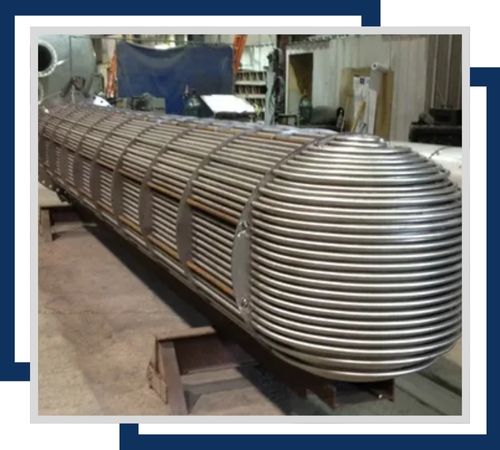

Stainless Steel 309 Heat Exchanger Tube excels in high-temperature environments and comes in sizes from 1/4″ to 12″ outer diameter. Its excellent corrosion resistance makes it suitable for chemical processing and power generation industries. This tubing ensures efficient heat transfer and durability in demanding conditions.

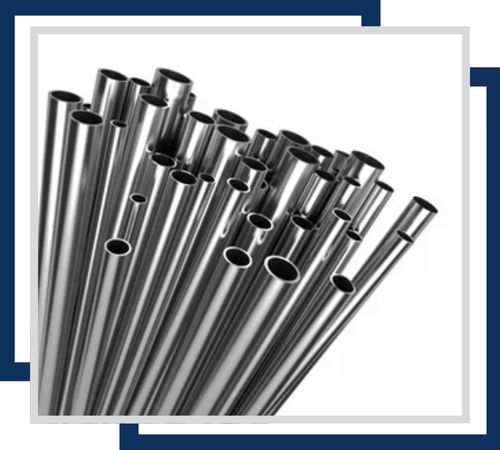

Stainless Steel 309 Instrumentation Tubing, available in sizes from 1/8″ to 1″ nominal diameter, offers superior corrosion resistance and precision. It is ideal for use in high-pressure and high-temperature instrumentation systems. The smooth internal surface ensures accurate and reliable fluid flow.

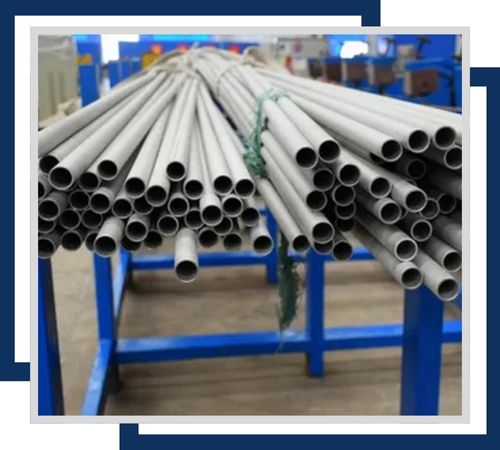

Stainless Steel 309 Boiler Tubes provide exceptional corrosion resistance and are available in sizes from 1/4″ to 5″ outer diameter. They are designed to withstand high temperatures and pressures in boiler systems. These tubes offer longevity and efficiency in steam generation and other heat-related processes.

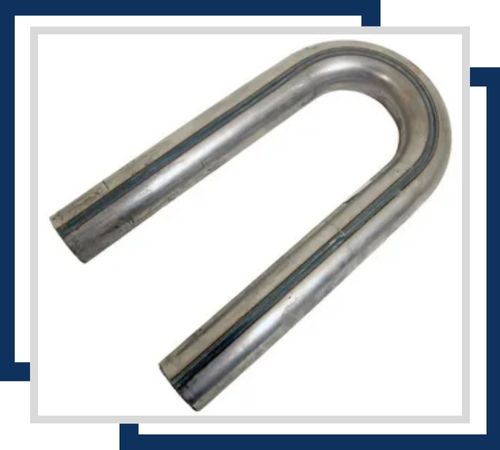

Stainless Steel 309 U-Tubes, with sizes ranging from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and are shaped for efficient heat exchange in compact spaces. They are widely used in heat exchangers, condensers, and economizers. Their U-shape design ensures optimal thermal performance.

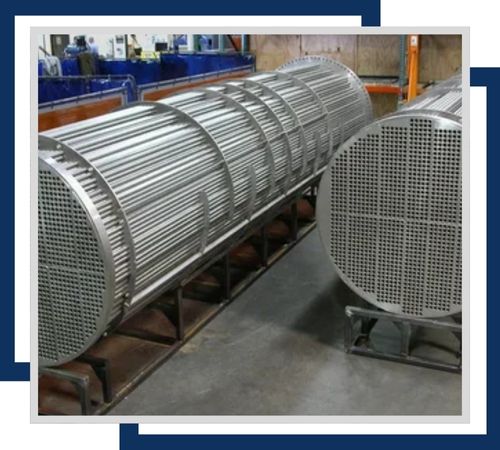

Stainless Steel 309 Condenser Tube provides high corrosion resistance and is available in sizes from 1/4″ to 2″ outer diameter. It is used in condensers for efficient heat transfer in various industrial processes. This tubing type ensures durability and performance in corrosive environments.

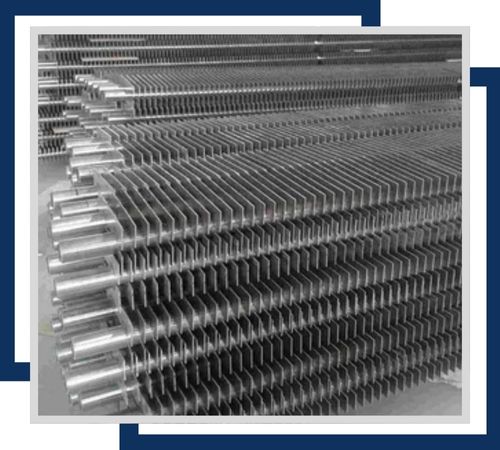

Stainless Steel 309 Fin Tubes, available in sizes from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and enhanced heat transfer efficiency. The finned design increases the surface area, making them ideal for heat exchangers and cooling systems. These tubes provide reliable performance in high-temperature applications.
Stainless steel 309 tubing is highly used due to its good high-temperature resistance and strength. It is used in different high-temperature applications, industrial furnaces, heat exchangers, gas turbines, and chemical processing equipment among others. There is a great oxidation resistance and corrosion of this steel that makes it ideal for use in environments with elevated temperatures and aggressive chemicals. It is also applied in manufacturing parts for power plant, aerospace and marine applications, which require strength and performance at elevated temperatures. Further, it’s used in automotive industry in the exhaust systems.
