Monib Stainless, being a famous stainless steel high-performance products manufacturer and supplier, situated in Safat, Kuwait, have the ability of catering to any of their clientele needs and supplying numerous wide variants of stainless steel fittings and various components. Due to this ability, they excel at offering such stainless steel goods, including some very strong pieces such as stainless steel 317/317L Forged Fittings. These fittings are also widely used in the oil and gas, petrochemical industries, and even in manufacturing industries. we always sure of meeting international standards for every product, offering clients reliable piping and structural requirements.
Stainless steel 317/317L forged fittings are mainly made of steel, chromium (17%), nickel (13%) and molybdenum (3%). These alloys increase corrosion resistance, especially to chlorides, and enhance high temperature stability. The properties include good tensile strength, excellent ductility and resistance to pitting, cracking and corrosion. The main advantages are excellent resistance to acidic environments, durability under extreme conditions, and versatility in applications requiring high strength and corrosion resistance resistant in They are ideal for the chemical industry, marine environment and petrochemical industry.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 317 / 317L UNS (S31700, S31703), DIN (1.4449, 1.4438)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 317/317L forged fittings go through rigorous testing procedures, including dimensional testing, mechanical testing and corrosion resistance testing. The products are certified to meet international quality standards, including ASTM, ASME, and EN specifications, providing customers with guaranteed reliability and performance for a range of industrial applications

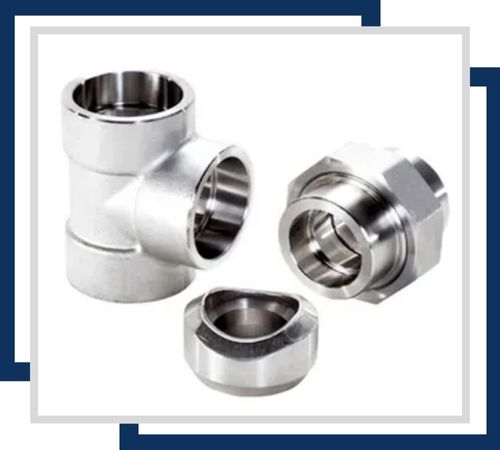

Stainless Steel 317 Socket Weld Fittings are renowned for their excellent corrosion resistance and are commonly used in high-pressure applications. They are available in sizes ranging from 1/8″ to 4″ and are manufactured to meet ASTM standards, ensuring strong, leak-proof connections.

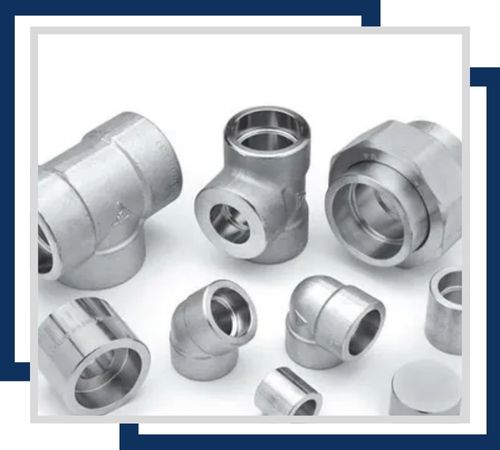

Offering high corrosion resistance, these fittings are designed for easy installation in various piping systems. Common sizes range from 1/8″ to 6″ NPT, providing versatility and robustness in handling fluids and gases.

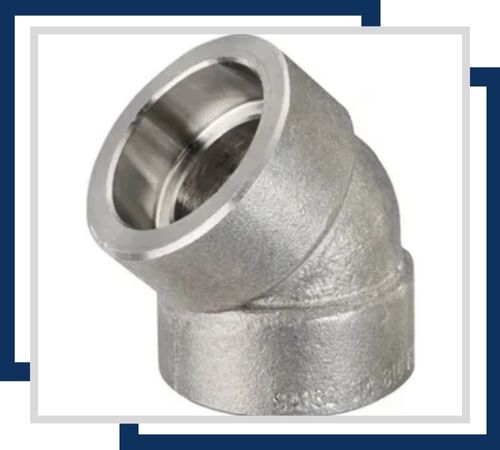

With superior corrosion resistance, this elbow allows for smooth directional changes in piping systems. It is available in sizes from 1/2″ to 4″ and is designed to meet ASTM specifications for high strength and durability.

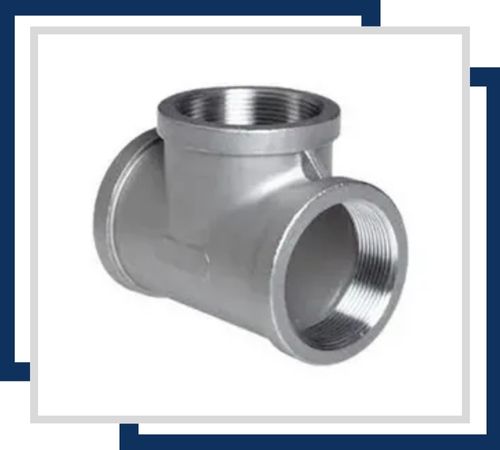

This fitting combines high corrosion resistance with structural integrity, ideal for branching pipes at a 90-degree angle. Available in sizes from 1/8″ to 6″ NPT, it ensures reliable and secure connections.

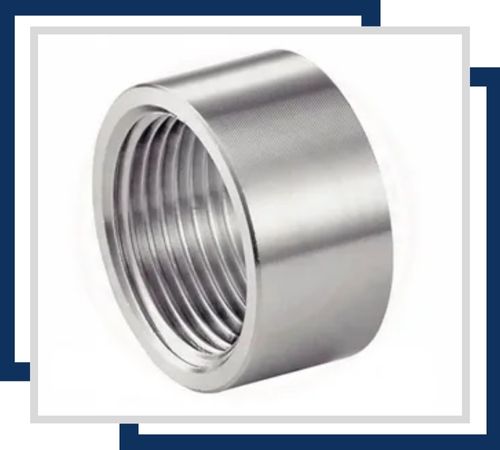

Known for its excellent corrosion resistance, this half coupling connects two threaded pipes or fittings. Common sizes include 1/4″ to 4″ NPT, providing a strong and durable link.

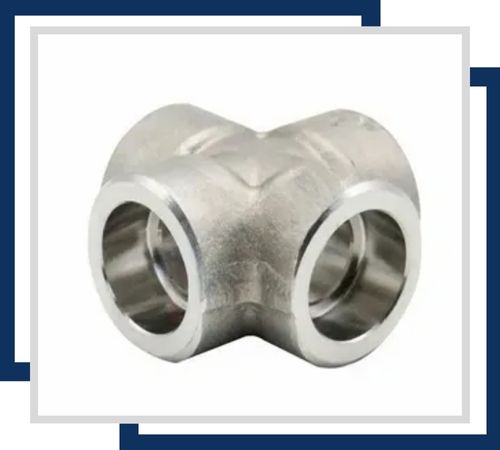

This cross-fitting offers exceptional corrosion resistance, enabling the intersection of four pipes. Sizes typically range from 1/2″ to 4″, adhering to ASTM standards for robustness and reliability in high-pressure applications.
Stainless Steel 317/317L Forging Fittings possess excellent corrosion-resistant properties and resistance to pitting and crevice corrosion along with high strength. These alloys offer superior performance as they find huge applications in power plants, the oil and gas sector, and petrochemicals in all kinds of applications ranging from pipes and valves to connect equipment in high pressure and temperature operating conditions. Furthermore, it proves to be efficient for application processes that use acid, chlorides, or some other aggressive chemical. They have been used in food processing, pharmaceutical, and marine industries, for applications under very corrosive and high-stress conditions. Their sound performance makes them an indispensable choice for critical piping systems.
