Monib Stainless has made a name for itself as a leading manufacturer and supplier of Stainless Steel 310H Forged Fittings in Safat, Kuwait. They pride themselves on delivering top-notch products that are specifically designed to withstand high temperatures and harsh industrial conditions. With a strong focus on engineering excellence, Monib Stainless offers forged fittings that boast exceptional strength, durability, and performance, even in the most demanding applications. Their state-of-the-art manufacturing facilities and rigorous quality standards ensure that every 310H forged fitting is crafted with precision to meet international specifications. Thanks to their customer-focused approach, technical know-how, and reliable delivery, Monib Stainless has become a trusted partner for various industries, including petrochemicals, power generation, oil & gas, and chemical processing throughout Kuwait.
Stainless Steel 310H Forged Fittings are primarily made up of chromium and nickel, usually featuring 24–26% chromium and 19–22% nickel, with a higher carbon content that boosts their strength at high temperatures. This particular grade is known for its outstanding oxidation resistance, capable of withstanding temperatures up to 1100°C, and it also offers excellent creep resistance. On the mechanical side, SS 310H showcases impressive tensile strength, solid yield properties, and remarkable toughness even when things heat up. Its sturdy design guarantees durability, weldability, and resistance to corrosion in harsh environments, making it a great choice for heat-intensive applications that demand long-lasting stability.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 310H lattice fittings through stringent testing and certification programs. Extensive testing of each component is carried out, including dimensional testing, mechanical testing and corrosion resistance evaluation. Certifications such as Mill Test Reports (MTR) and ISO compliance ensure the reliability and performance of each fitting.
Corrosion-resistant and designed for high-temperature applications, these fittings are ideal for joining pipes. Sizes typically range from 1/4 inch to 4 inches. Dimensions vary based on pipe size, with standard schedules available.
Offering excellent corrosion resistance, these fittings are used where welding is impractical. Common sizes range from 1/8 inch to 2 inches. They are available in various threads per inch, adhering to ANSI standards.
This elbow provides high resistance to oxidation and corrosion at elevated temperatures. Available in sizes from 1/2 inch to 4 inches, it helps in redirecting flow at a 45-degree angle. Dimensions conform to ANSI/ASME standards.

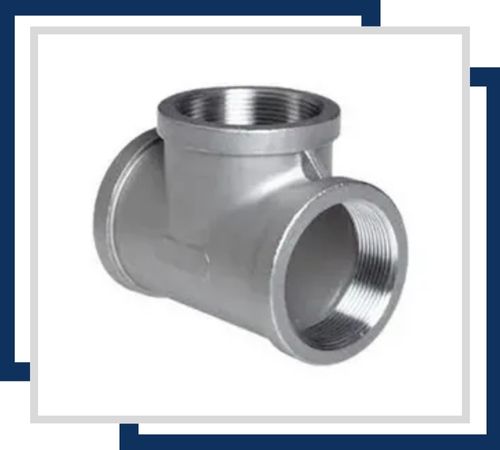

Corrosion-resistant and durable, the threaded tee connects three pipes. Sizes generally range from 1/4 inch to 4 inches, with dimensions following standard pipe thread specifications for ease of connection.
Offering superior resistance to high temperatures and corrosion, this coupling is used for pipe connections. Sizes typically range from 1/4 inch to 2 inches. It features internal threads that match standard pipe sizes.
With excellent corrosion resistance, the socket weld cross allows for the connection of four pipes at a single junction. Common sizes range from 1/2 inch to 2 inches, with dimensions based on standard pipe specifications.
Stainless Steel 310H Forged Fittings are a go-to choice in industries that require top-notch performance in high temperatures and outstanding resistance to corrosion. They’re perfect for applications like heat exchangers, boilers, furnace components, thermal processing equipment, and petrochemical pipelines. In settings like refineries and power plants, these fittings efficiently manage hot vapors, gases, and corrosive fluids. Thanks to their impressive mechanical strength, they’re also well-suited for high-pressure systems, superheater tubes, and combustion chambers. Plus, SS 310H forged fittings are highly sought after in chemical plants, food processing facilities, and offshore environments where durability, reliability, and resistance to oxidation and scaling are crucial for ensuring long-term safety and efficiency.
