Monib Stainless is a well-known manufacturer and supplier in Safat, Kuwait, with stainless steel products. Monib Stainless has always been committed to excellence and offers a wide range of stainless steel solutions, including Stainless Steel 309H Flanges. The flanges are designed to withstand extreme temperatures and offer excellent resistance to oxidation and corrosion, making them ideal for high-temperature applications in industries such as petrochemical, chemical, and power generation. Monib Stainless offers flanges with reliable, durable, and top-grade quality with the use of state-of-the-art manufacturing facilities and strict quality control measures.
Stainless Steel 309H Flanges High carbon alloy is essentially the same type as 309 with better high temperature corrosion and oxidation resistances. Composition comprises of almost 23-25% Cr, 12-15% Ni, but its carbon level (0.04-0.10%) is greater than in 309 alloy that ensures enhanced strength. Material can deliver more superior strength as well as excellent resistance against oxidation that provides high potential application of it, including furnace conditions or thermal/ petrochemical industries’ application at higher temperature. The mechanical properties comprise tensile strength at 520-720 MPa, yield strength of 205-275 MPa, and elongation of 40%. This also shows excellent weldability as well as high formability in manufacturing flanges.
| Specifications | ASTM A240 / ASME SA240 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| ASTM A182 GRADE | C | Mn | P | S | Si | Ni | Cr | Mo | Nb | Ti | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F304(1) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-11.0 | 18.0-20.0 | ||||
| F304H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-11.0 | 18.0-20.0 | ||||
| F304L(1) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-13.0 | 18.0-20.0 | ||||
| F304N(2) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-10.5 | 18.0-20.0 | ||||
| F304LN(2) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-10.5 | 18.0-20.0 | ||||
| F309H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 12.0-15.0 | 22.0-24.0 | ||||
| F310 | 0.25 | 2.0 | 0.045 | 0.030 | 1.0 | 19.0-22.0 | 24.0-26.0 | ||||
| F310H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 19.0-22.0 | 24.0-26.0 | ||||
| F310MoLN | 0.030 | 2.0 | 0.030 | 0.015 | 0.40 | 21.0-23.0 | 24.0-26.0 | 2.0-3.0 | N 0.10-0.16 | ||
| F316 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316L(1) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316N(2) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316LN(2) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316Ti | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | (3) | N 0.10 max | |
| F317 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |||
| F317L | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |||
| F321 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-12.0 | 17.0-19.0 | (4) | |||
| F321H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-12.0 | 17.0-19.0 | (5) | |||
| F347 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (6) | |||
| F347H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (7) | |||
| F348 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (6) | Co 0.20 Ta 0.10 | ||
| F348H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (7) | Co 0.20 Ta 0.10 |
| ASTM A182 Grade | Minimum Tensile Strength in MPa | Minimum Yield point in Mpa | Minimum Elongation in % | Minimum Reduction of in min, % |
| Stainless Steel Flanges | 515 | 205 | 30 | 50 |
Contact us to get a quick quote for your requirement.
We provides Stainless Steel 309H Flanges- Monib Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Monib Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

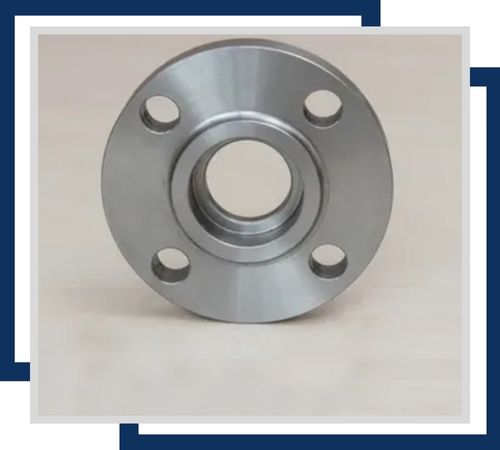

The SS 1.4833 socket weld flange, known for its excellent high-temperature and corrosion resistance, provides a secure, durable connection in critical applications, ensuring performance and reliability in harsh industrial environments.
The ASTM A182 F309 ring-type joint flange offers exceptional high-temperature strength and corrosion resistance. It ensures reliable, leak-proof connections in demanding environments, making it ideal for critical industrial applications.
UNS S30900 spectacle blind flanges deliver superior high-temperature strength and corrosion resistance. Ideal for pipeline isolation and maintenance, these flanges ensure robust, reliable performance in demanding industrial settings.
Stainless Steel 309H flanges are used at high temperatures since they have great heat resistance and strength. The alloy is widely used in petrochemical, power generation, and chemical processing industries where it joins pipes in the high-heat environment. With a high percentage of chromium and nickel, this alloy can stand up to a temperature of about 1100°C, hence used for parts of furnaces, heat exchangers, and boilers. Stainless Steel 309H flanges do not corrode, oxidize, and ensure durability for long periods in corrosive environments, acidic, and alkaline environments.
